Paediatric Upper Limb Fractures

Paediatric Upper Limb Fractures

General principles

  • Must consider growth plates
  • Sprains uncommon
  • Infants/toddlers – Femur and skull #
  • Primary school – Elbow region
  • Adolescents – Complex ankle fractures, transition to adult pattern and increasing ligamentous injuries

Salter-harris

  • Salter-Harris type 2 is most common
  • Types 3 and 4 are intra-articular as well as involving the physis and are therefore more worrying
  • Most common Salter-Harris IV is lateral condyle of humerus
  • Growth plate is injured in 1/3 of all bony injuries in children
    • Head of femur, head of radius prone to AVN
    • Distal radius/tibia/femur all tend to survive

NAI

  • 1-2% of paediatric injury presentations, particularly in younger children
  • All fractures in a child <12 months should be discussed with Paediatrician or Child Safety
  • Suggestive fractures of NAI
    • Proximal humerus or humeral shaft fractures <3yo
    • Shearing or distraction mechanism
    • Corner or bucket-handle metaphyseal injuries
    • Femoral fractures in infants
    • Rib fractures
    • Complex skull fractures
    • Multiple fractures, especially different ages
  • Suggestive presentations
    • Delayed
    • Different caregiver
    • Unwitnessed– Infants within view, toddlers within earshot…unless asleep
    • Recurrent fractures
    • Unexplained soft tissue markings
    • Unexplained anxiety
  • Assessment
    • Draw diagram of injury history as described by witness
    • Examine child all over
    • Ascertain any previous injury history
    • Is developmental level congruent
    • Is history adequate

Clavicular fractures

  • Midshaft clavicular fractures (80%)
    • At any age, fall onto shoulder or outstretched hand
    • Usually greenstick
    • Broad-arm sling to support limb for 2 weeks or until comfortable
    • No evidence for figure-of-8 bandage or brace
    • If age >12 and shortened >2cm, refer to orthopaedics
    • If <11yo and undisplaced, GP f/u
    • If displaced or >11yo, fracture clinic
  • Lateral clavicular fracture (15%)
    • Broad-arm sling for 2 weeks or until comfortable
    • No evidence for figure-of-8
    • Fracture clinic f/u in 5-7 days
    • If displaced, refer to Orthopaedics
  • Medial third clavicular fracture (5%)
    • If displaced refer to Orthopaedics
    • Consider sternoclavicular dislocation or physeal sleeve separation, neurovascular, pulmonary and cardiac injuries
  • Lateral clavicular physeal fracture-separation
    • If posteriorly displaced, may required operative intervention
    • Otherwise place in sling and graduated exercises
  • Who gets referred urgently?
    • Neurovascular compromise
    • Suspected underlying structural involvement
    • Open fractures
    • Severely comminuted or shortened >2cm in >12yo
    • Displaced medial third
    • Displaced lateral third
    • Pathological fractures

Shoulder dislocation

  • Rare under 10 yo
  • Best method is traction in prone position

Proximal Humeral fracture

  • Proximal humerus
    • <5% of paediatric fractures
    • Prior to physeal closure (14-16yo), large displacement and angulation allowable
      • 5-12 yo: 60 degrees angulation and 50% displacement
      • >12 years: 30 degrees angulation and 30% displacement
    • Collar and cuff is usual treatment or shoulder immobiliser (no difference in outcome)
    • Infantile proximal injuries are usually physeal separations occuring in birth process and only visible on USS (proximal humeral epiphysis does not appear until 6mo)
    • Isolated greater tuberosity fractures with displacement are the exception and often require ORIF
  • Who gets referred urgently?
    • >50% or 30% displacement (depending on age)
    • >60 or 30 degrees angulation (depending on age)
    • Pathological including through benign bone cyst
    • Associated brachial plexus
    • Vascular injury
    • Ipsilateral upper limb fractures
    • Multitrauma
  • Does not have the same association with NAI as humeral shaft fractures

Humeral shaft fractures

  • Midshaft humerus
    • Uncommon (2-5% of all paediatric fractures)
    • May be blunt or NAI
      • Spiral fractures in toddlers and younger are highly suspicious
      • Transverse and oblique due to direct trauma
    • Check and document radial nerve fx
      • At risk running in posterior radial groove at junction of middle and distal thirds
    • Will usually heal well due to weight of arm in collar and cuff
      • Acceptable axial alignment is within 10 degrees
      • Occasionally a hanging U-slab with collar and cuff is required
    • Follow-up in fracture clinic
  • Who gets referred urgently?
    • Open fractures
    • Neurovascular compromise
    • Extreme swelling/compartment syndrome
    • Unable to achieve adequate reduction within 10 degrees
    • Pathological fracture
    • Suspicion of NAI
    • Multitrauma/associated fractures

Elbow injuries

  • 75% supracondylar and 10% lateral epicondyle
  • Missed or poorly treated injuries figure heavily in litigation
  • Post-traumatic elbow effusion in childhood without an apparent fracture most commonly represents a minimally displaced supracondylar fracture
    • Must be immobilised in collar and cuff OR above elbow POP until fracture clinic review

Elbow X-ray

  • Check for hourglass figure on distal humerus to confirm lateral
  • Look for anterior fat pad
    • Small one is normal
  • Look for posterior fat pad
    • 75% specific for fracture
  • Check anterior humeral line
    • Should go through middle third of capitellum
  • Check the radiocapitellar line
    • Line through midde of proximal radial shaft should bisect capitellum in lateral and AP views
  • Look at radial head and neck angulation – often subtle
  • Check cortex lines of distal humerus
  • Check that ossification centres are appropriate
    • CRITOE (see next slides)

CRITOE

  • Capitellum (1)
  • Radial head (3)
  • Internal epicondyle (5)
  • Trochlear (7)
  • Olecranon (9)
  • External epicondyle (11)

Figure of 8 sign/hourglass

Anterior humeral line

Radio-capitellar line

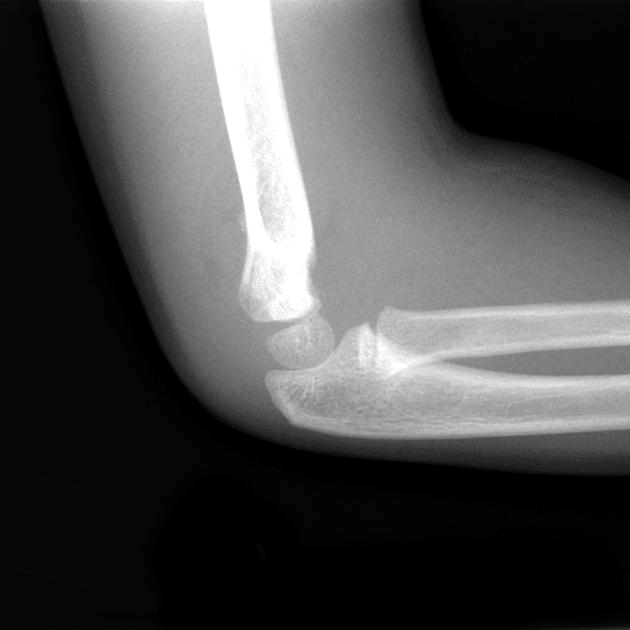

Supracondylar fracture

  • Typically primary school age with FOOSH with fracture through thin part of humerus above the growth plate
  • Peak age 5-8 and most common elbow fracture in children
  • Flexion-type (rare) with anterior displacement of distal fragment
  • Extension-type (98%) with posterior displacement of distal fragment
  • Urgent orthopaedic review if:
    • Absent radial pulse
    • Ischaemic hand
    • Severe swelling of forearm/elbow
    • Skin puckering or anterior bruising
    • Open injury
    • Neurological injury
  • Deformed fractures should be placed in splint 30 degrees short of full extension prior to X-ray

Supracondylar fracture
 – Extension type

  • Gartland type 1 – undisplaced
    • Fracture line between olecranon and coronoid fossae may be seen on AP view
    • Immobilise in above-elbow slab in 90 degrees flexion for 3 weeks
    • Wear under clothing
    • From as high as possible (axilla) to MCP joints
    • GP follow-up without repeat X-ray is suitable (RCH)
  • Gartland type 2
    • Posterior angulation with probable intact posterior cortex
    • Check for associated varus/valgus deformity – NONE IS ALLOWED EVER
    • Use anterior humeral line to judge degree of posterior angulation
    • IIa (angulation only)
      • Above elbow slab at 90 degrees if able with f/u within 24 hours
    • IIb (angulation with rotation)
      • Gentle reduction by anterior push on distal fragment as elbow flexed to 90 degrees and admit under ortho
    • Consult orthopaedics and observe overnight with likely f/u in ortho in 1 week with repeat X-ray
  • Gartland type 3 – Grossly displaced/rotated with no cortical contact
    • Check for open or neurovascular compromise
    • Brachial artery often involved – check radial pulse frequently (15% of cases have vascular injury)
    • Risk of compartment syndrome
    • If orthopaedics not available within 1 hour, traction and reduction under sedation to maximise radial pulse is indicated
    • Check median/radial nerves also
    • Splint in extension if grossly swollen

Supracondylar fracture

  • 15% of displaced fractures have nerve injury
    • Mostly anterior interosseous branch of median nerve
      • Supplies deep muscles of forearm (FPL, lateral half of FDP and pronator quadratus)
    • Must test all nerves of forearm/hand
  • Screening tests
    • Okay sign: Need visible flexion of DIP of index finger (FDP) and IP joint of thumb (FPL) to confirm anterior interosseous branch of median nerve intact
    • Benediction sign: Ask child to make fist but cannot flex thumb IP or index finger
    • Thumbs up: To fully extend thumb need intact EPL (radial nerve)
    • Starfish sign: To fully abduct all digits need intact ulnar nerve (DAB)
    • Cross fingers over one another: Again need intact ulnar nerve (DAB and PAD)
  • Do not attribute failure to do these to pain alone
  • Who needs urgent ortho consult:
    • Absence of radial pulse
    • Ischaemia of hand
    • Severe swelling in elbow/forearm
    • Skin puckering or anterior bruising
    • Open injury
    • Neurological injury
    • Associated same arm forearm/wrist injuries
    • Flexion supracondylar fractures
  • If pulseless hand
    • If cool and pale need emergency OT for reduction and K wires +- vascular involvement
    • If warm and pink hand – urgent but not emergent
  • Patients less than 3yo
    • Do not yet have capitellum ossification
    • Appears as dislocated elbow but is actually physeal separation of humerus (Salter-Harris type 1)
    • True elbow dislocation in this age group is very rare
  • Intercondylar (T) fracture
    • Occurs in adolescents with axial impaction
    • Intra-articular separation of capitellum and trochlea and disruption of medial and lateral distal humeral columns
    • Operative

Lateral condylar fracture

  • Lateral condyle
    • Second-most common elbow fracture in children (15-20% of elbow #)
    • 6-10yo (peak at 6yo)
    • Can frequently look benign clinically and get missed with poor outcomes
    • Varus force on supinated forearm, avulsing the condyle
    • Usually Salter-Harris type 4 but late appearance of trochlear and lateral epicondylar ossification centres, means often missed on X-ray (especially in younger children)
      • Ossification centre of lateral condyle arises at 18mo to 2 years
      • Ossification centre of lateral epicondyle arises at 11-13 years
  • Milch type 1
    • Fracture line goes through capitellar ossification centre (laterally)
    • Salter-Harris IV equivalent
  • Milch type 2  (most common)
    • Fracture line runs medial to the capitellar ossification centre
    • Salter-Harris II equivalent
  • If uncorrected, leads to valgus deformity and delayed ulnar nerve palsy with arthritis
  • Treatment
    • All require orthopaedic review
    • Any lateral condyle fracture with >2mm separation or any angulation is likely to require ORIF
    • All young children with major elbow swelling/deformity should all be assessed by orthopaedics as may require USS/MRI/arthrography
    • Place in splint of some description while awaiting orthopaedics
    • Undisplaced can be placed in above elbow backslab at 90 degree flexion and supported in sling with fracture clinic follow-up
    • Minimally displaced (<2mm) can either be placed in slab or pinned
  • Infants
    • May suffer lateral humeral condyle separation as Salter-Harris type 1 fracture
    • Difficult to see radiologically but grossly swollen and tender laterally
    • History must explain varus force, NAI must be considered and USS may be required

Medial epicondylar fractures

  • Medial epicondylar avulsion
    • 50% are associated with elbow dislocation
    • Medial condylar fracture are very rare (<1%) vs. medial epicondylar (5-10% of all elbow fractures in children)
    • Origin of common flexor tendon and ossifies at around age 6, fusing at age 14-17yo
    • Therefore, does not occur in children <5yo
    • This is an avulsion injury from common flexor origin
    • Will usually reunite with humerus if <5mm separation unless interposing tissue
    • Ulnar nerve injury is common
    • W.r.t. CRITOE, there should not be a trochlear ossification centre without one in the medial epicondyle and if seen, suggests an intra-articular medial epicondylar fracture segment
      • If closed reduction is performed of an elbow joint, always check post-reduction X-ray for trapped medial epicondyle fragment
  • Treatment
    • <5mm displacement
      • Above elbow backslab 90 degrees flexion for 3 weeks. Fracture clinic f/u then collar and cuff for 3 weeks
    • 5-15mm displacement – Ortho referral
      • Closed vs. open depends on age, dominance and sporting ability
    • >15mm displacement (with elbow dislocation) – Ortho referral
  • Who needs urgent ortho consult?
    • Displacement >15mm
    • Medial condyle fracture (i.e. intra-articular)
    • Associated with elbow dislocation
    • Entrapment of medial epicondyle fragment in joint

Medial condylar fractures

  • Very rare
  • Intra-articular and need urgent ORIF

Pulled elbow

  • Pulled elbow
    • Above 6 months with disuse of one arm, held in semi-flexed and pronated position with hx of pulling
    • Should be point tender over radial head and no palpable elbow effusion (compared to other side)
    • Oval shape of radial head allows slight subluxation through annular ligament when forearm pulled in pronated position
    • Unusual if over 5 yo
  • Reduction
    • Hyperpronation most likely to succeed and less painful
    • Oral or intranasal analgesia necessary prior
    • Hold thumb over radial head
    • If fails, consider repeating and/or full, firm supination and flexion technique
    • If still fails, repear history and exam + consider X-ray and/or USS
    • If no alternative diagnosis, put in sling in neutral position and review in 24-48 hours (most will spontaneously reduce)
    • Persistent dysfunction >48 hours requires orthopaedic review

Elbow dislocation

  • From adolescence onwards
  • Results from FOOSH with partially flexed elbow
  • Younger children sustain supracondylar fractures
  • Mostly posterior dislocations +- coronoid/radial neck/medial epicondyle #
  • Median and ulnar nerves at risk
  • Reduce in ED under sedation with gentle downwards pressure applied to supinated proximal forearm with extension of elbow to 135 degrees against distal humerus counter-traction
    • Full extension risks ulnar nerve injury
  • Place in flexed above elbow POP and arrange orthopaedic follow-up

Olecranon fractures

  • Olecranon fractures
    • Occur in older children in one of three patterns:
      • 1) Avulsion (flexion) fractures (ORIF)
      • 2) Extension fractures with intra-articular opening (may be stable in flexion)
      • 3) Comminuted from direct blow
    • Ossification centre appears around age 10 and may be fragmentary (easily confused)
    • Most common error is missed radial head dislocation (Monteggia variant), lateral condyle #, radial neck # or supracondylar #
      • Always assess radiocapitellar line
    • Treatment
      • Isolated/undisplaced – Above elbow backslab at 90 degrees flexion and # clinic
      • Displaced, unstable and combined – Above elbow backslab at 90 degrees and consult

Radial head fractures

  • Rare in children. More often physis or radial neck (metaphysis)
  • More common in older teenagers
  • 35% have associated injuries: LCL, MCL, DRUJ disruption, interosseous membrane disruption, Coronoid/olecranon fracture, elbow dislocation, terrible triad (elbow dislocation, radial head fracture, coronoid fracture), carpal fractures
  • Evaluate for mechanical blocks (may require elbow aspirate and local infiltration)
  • Test collateral ligaments, wrist, interosseous membrane
  • Management
    • Sling and early ROM for isolated minimally displaced fractures with no mechanical blocks
    • ORIF for rest

Radial neck fractures

  • Associated injuries in 50% including medial epicondyle avulsion, olecranon fracture or proximal ulna or elbow dislocation
  • May be subtle ‘torus’ breaking of the neck (best seen on lateral side on lateral view) to displaced fractures
  • Localised tenderness should raise suspicion
  • Posterior interosseous nerve (finger extension) injury must be sought
  • Check interosseous membrane (radius pull test) and wrist for associated injuries
  • Risk of forearm compartment syndrome
  • Treatment
    • Isolated, <10 % translation, <30 degrees angulation and <10yo
      • Above elbow backslab at 90 degree flexion with sling and # clinic f/u
    • All other fractures require orthopaedic review (as you can see this includes every child >10yo as minimal remodelling capacity and any angulation may be significant
  • Need to be seen in fracture clinic soon as healing occurs rapidly and closed reduction becomes difficult after 5 days. Many have missed injuries around the elbow

Monteggia fracture-dislocation

  • Peaks age 4-10
  • Dislocation of radial head (proximal radioulnar joint) with fracture of ulna
  • Missed radio-capitellar disruption has SEVERE ramifications and is common!
    • If ulna fracture is present, always look for radial head dislocation
  • Always X-ray elbow for wrist injuries
  • Must assess radio-capitellar line AND normal straight posterior ulna border on lateral view
  • Radial nerve is the most commonly injured (10-20%)
    • Usually a neurapraxia treated expectantly
    • May be posterior interosseous nerve injury (lies near radial head)
  • Bado type 1 (70%)
    • Anterior displacement of radial head with angulated apex-volar ulnar shaft fracture
  • Bado type 2 (5%)
    • Posterior displacement of radial head with angulated apex-dorsal ulnar shaft fracture
  • Bado type 3 (25%)
    • Laterally displaced radial head with fracture of ulnar metaphysis
  • Bado type 4 (rare)
    • Anterior dislocation of radial head with fracture of diaphysis of radius and ulna
  • Monteggia equivalent
    • Proximal radial fracture/dislocation with bowing deformity of ulnar shaft must be sought (easily missed!)
  • Aim of treatment is reduction of radial head and all require urgent orthopaedic review with reduction in OT for most
  • Delayed diagnosis with complex management and poor outcomes is the most common complication!
Monteggia I with radial head dislocation and bowing deformity

Galeazzi fracture-dislocation

  • Often missed and difficult to recognise (most often missed injury with distal radius #)
    • If distal radius fracture ALWAYS look at the DRUJ. REFER ALL SUSPECTED GALEAZZI
  • Radial shaft distal third fracture with distal radioulnar disruption
  • Volar – Volar displacement of ulna
  • Dorsal – Dorsal displacement of ulna
Volar
  • Always look at the ulnar styloid
    • If not pointing at the triquetrum in all views = subluxation/dislocation of DRUJ
  • Mostly managed with closed reduction under fluoroscopy to assess stability of DRUJ
    • Adolescents generally need ORIF or K –wires to stabilise the DRUJ

Galeazzi equivalent

  • Distal radius fracture with distal ulna physeal fracture without displacement of distal radioulnar joint
  • Much more common in children than
    true galleazi

Midshaft radial and ulnar fracture

  • Greenstick
    • Only convex side of cortex is broken
  • Plastic deformation (bowing)
    • Usually require GA/orthopaedics due to prolonged corrective forces necessary
    • Bowing fractures often missed and mostly seen with ulna – check for straight posterior border on lateral view
  • Complete fractures
    • Difficult to reduce, requiring internal fixation in 5-10%
  • Single radial shaft fracture often associated with DRUG injury (Galleazi)
  • Single ulnar shaft fracture often associated with proximal radial head dislocation (Monteggia)
  • Reduction
    • Apex volar – pronate forearm, wrist traction and volar pressure
    • Apex dorsum – Supinate forearm, wrist traction and dorsal pressure
  • Inherent instability makes 3-point moulding, straight ulnar border and interosseous moulding necessary
  • Above elbow backslab required with interosseous moulding, 3-point moulding, mid-prone position, 90 degree elbow flexion
  • Consider admitting overnight for observation to monitor for compartment syndrome

Proximal third radial shaft fractures

  • Who needs reduction?
    • <10yo: >10 degrees angulation
    • >10yo: Anatomic reduction with internal fixation recommended for all
    • As girls mature earlier, acceptable angulation may be less for them
    • Up to 45 degrees rotation is acceptable, but get orthopaedic opinion as rotation is difficult to assess radiologically

Mid and distal third radial shaft fractures

  • Who needs reduction?
    • <5yo: >20 degrees angulation
    • <10yo: >15 degrees angulation
    • >10yo: >10 degrees angulation
    • Any rotational deformity requires orthopaedic opinion (can have up to 45 degrees but difficult to quantify on X-ray)

Distal radial/ulnar fractures

  • May be metaphyseal or epiphyseal
  • Dorsal angulation in 80%
  • Metaphyseal fractures have peak incidence in adolescent growth spurt due to weakening of metaphysis
  • 13% incidence of other arm injuries
  • Occur with proximal forearm fractures including Monteggia, supracondylar humeral fractures and hand fractures
  • Minimally displaced complete metaphyseal fractures can resemble buckle fractures but management is very different
  • Buckle injuries often misdiagnosed as wrist ’sprains’

Distal radial/ulnar metaphyseal fractures

  • Simple torus (buckle) fractues
    • No periosteal or cortical breach. Occurs through compression injury
    • Can be placed in forearm splint or brace for 3 weeks. No F/U required.
    • Check cortices intact on AP and lateral
  • Undisplaced greenstick or complete
    • A single cortex or periosteum breached (greenstick)
    • Inherent instability and potential for further deformation
    • Well-moulded, three-point fixated below-elbow plaster in neutral position and ortho follow-up
  • Angulated or displaced greenstick fractures
    • Require reduction (see table)
    • 3-point moulding with slight wrist flexion (if dorsal apex angulation) or extension (if volar apex angulation)
    • Below elbow for older children but above-elbow in younger children
  • Angulated or displaced isolated radial fractures
    • Closed reduction with immobilisation in below-elbow cast for 6 weeks with # clinic f/u
    • For young children, above elbow-cast preferred
  • Fractures of radius and ulna with complete displacement and shortening
    • Reduction and above elbow cast
    • 10% will lose reduction. Must be followed-up closely
    • Speak to Orthopaedics

Distal radius/ulna fractures

  • Who needs reduction of distal radius?
    • 0-5yo: >20 degrees angulation
    • 5-10yo: >15 degrees angulation
    • 10-15yo: >10 degrees angulation
    • Bayonet apposition (side-by-side vs. end-to-end)
      • Acceptable up to age 6 as long as angulation acceptable as per above
      • If 6-11yo ask ortho after attempted reduction
      • If >11yo, must have proper apposition
    • Coronal plane angulation is less well tolerated
    • As always, girls mature earlier and may have lower acceptable angulations at the same ages

Distal radius physeal fractures

  • Salter-Harris injuries
  • May be isolated or associated ulnar greenstick/physeal or styloid fractures
  • Check median nerve fx
  • Peaks at pre-adolescent growth spurt
  • Uncommon under 5yo
  • Salter-Harris I: Dx on focal tenderness. Minimal signs on X-ray.
  • When is reduction required?
    • Angulation >20 degrees (on lateral) needs reduction
    • Less acceptable if <2 years of bone growth remaining
    • More angulation allowed if <8yo
    • If presents >5 days, DO NOT reduce in ED. D/W ortho as causes physeal damage

Distal radial physeal fractures

  • Management
    • Salter-Harris I and II – Undisplaced: Below elbow backslab or removable splint for 4 weeks and # clinic
    • Type I and II – Displaced: Closed reduction if angulation >20 degrees (see previous slide) and below elbow cast (above elbow in younger children) with three-point moulding and slight flexion (if dorsal apex) or slight extension (if volar apex)
    • Type III and IV – All: Splint and refer to ortho

Distal radial epiphyseal fractures

  • Treat as for metaphyseal fractures
    • Manipulation and closed reduction
  • Very low incidence of subsequent premature physeal closure
    • Risks include repeated/delayed manipulation, compressive injuries or distal physeal separation of ulna
    • Refer to fracture clinic for early review as manipulation of physis is contraindicated after 7 days
  • Salter-Harris III injuries have moderate risk of growth disturbance
  • Salter-Harris IV and V have high-risk of growth disturbance

Carpal injuries

  • Very rare under 8yo due to flexibility of wrist and plastic properties of pre-ossified bone
  • Scaphoid injuries are overdiagnosed
    • 65% of actual scaphoid fractures are distal pole with very low rares of non-union
    • Risk rises through adolescence
    • Scaphoid views suggested in older children if:
      • >10yo
      • High-velocity injury
      • Single-point tenderness and swelling over scaphoid dorsally and volar (more specific)
      • Pain to compression along first metacarpal ray
      • Kirk-Watson test positive (pain/clunk in scaphoid/scapholunar ligament on passive radial deviation of wrist)
  • If suspected, place in scaphoid cast and refer to fracture clinic

Metacarpal fractures

  • Must ensure no rotational deformity
  • Isolated metacarpal fractures will not cause malrotation
  • Isolated metacarpal neck fractures should be treated with buddy strapping

Phalangeal fractures

  • Salter-Harris 2 at base of first phalanx may cause radial/ulnar angulation
    • Correct with traction
  • May be subtle on X-ray
  • All intra-articular, open or oblique (unstable) fractures need orthopaedic referral

Thumb fractures

  • Forced thumb abduction can cause proximal thumb physis avulsion (Salter-Harris type 3 vs. adult-type UCL tear) or metaphyseal fracture of base of first metacarpal
  • The SH3 injury needs orthopaedic referral as needs ORIF
  • Metaphyseal fracture is allowed significant angulation and displacement if under 10 due to universal motion and remodelling capability
    • Place in scaphoid plaster and refer to fracture clinic

Last Updated on November 10, 2021 by Andrew Crofton
